Gas Protection Alumina Ceramics Welding Torch Accessories

MB26KD Gas Protection Welding Torch Accessories Protection Porcelain Sleeve

Product Overview

Alumina ceramic is a ceramic material with alumina as the main body, which is used for thick film integrated circuits. Alumina ceramics have better conductivity, mechanical strength and high resistance.

Model	Welding gun model	Specifications
MB24KD	Binzel	D9.4XD16.7X20mm
MB26KD	Binzel	D10.5XD15.0X29mm
MB36KD	Binzel	D10.5XD15.0X32.5mm
MB50ID	Binzel	D11.6XD15.4X27.7mm

Product parameter table

Material Project				Alumina AL203	Silicon carbide sic	Silicon nitride sin	Silicon nitride sin
Color				Ivory	black	black	Milky white, gray black
Content(%)				99.5	……	……	……
Main features				Excellent high frequency electrical insulation Good wear resistance preservative Strong High hardness	Good high temperature strength High thermal conductivity Strong alkali resistance Wear-resistant Lightweight	Good high temperature strength Strong impact resistance Strong corrosion resistance Lightweight	High strength and high impact resistance Good self-lubricating Strong alkali resistance Smooth surface Good toughness
The main purpose				Wear parts High temperature parts Corrosion resistant parts	Machinery Seal Sliding parts High temperature parts	Molten metal parts Metal plasticity Processed parts	Industrial knives Pump parts Wear parts
Density			Kg/m³	3.9*10	3.16*10	3.3*10	6.0*10
Mechanical behavior	Vickers hardness		Gpa	16.0	23.0	14.0	13.2	12.7
	Flexural strength		Mpa	360	450	1020	1000	1470
	Compressive strength		Mpa	2350	……	……	……	……
	Fracture toughness		Mpa	4	2-3	7	4-5	4-5
Thermal performance	Linear expansion coefficient	40-400℃	×10^-5/℃	7.2	3.7	2.8	10.5	10.8
	Linear expansion coefficient	40-800℃	×10^-5/℃	8.0	4.4	3.3	11.0	11.3
	Thermal conductivity		W/(m·k)	32	200	27	3	3
	Specific heat		J/(kg·k)	0.78*10	0.67*10	0.65*10	0.46*10	0.46*10
	Thermal shock resistance (in water)		℃	250	……	＞800	300	350
Electrical performance	Dielectric strength		V/m	15*10⁵	……	13*10⁵	11*10⁵	……
	Volume resistance(20℃)		Ω·cm	＞10¹⁴	10⁸	10¹⁴	10¹³	……
	Dielectric constant		……	9.6	……	9.9	33	……
	Loss factor		×10^-4	10	……	……	520	……

Product advantages

1. Good thermal conductivity, high insulation strength and high resistivity, low dielectric loss, and dielectric constant is generally between 8-10;
2. It has good conductivity, mechanical strength and high temperature resistance, and can be made into high-temperature structural ceramics.

Applications

Shipbuilding, bridges, large-scale structural facilities
Lighting industry
Electronics and electric heating industry

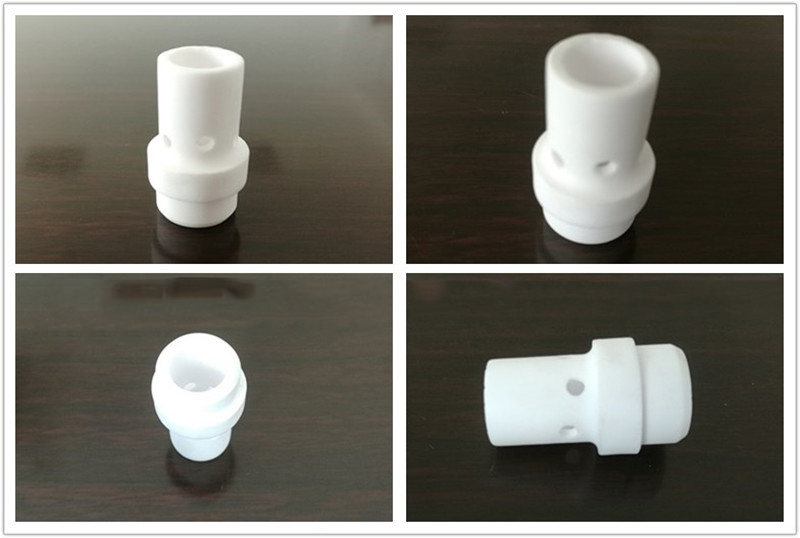

Product Picture

Alumina ceramics are also called precision ceramics, special ceramics, or high-tech ceramics. It uses highly selected raw materials and is produced according to a special manufacturing process, which can precisely control the chemical composition and ceramics with excellent properties.

Product packaging

Packed in carton

FAQ

1. Are you a businessman or a manufacturer?
We are a company, we have our own factory

2. How long is your delivery time?
Negotiable

3. Can the product be customized?
Can be customized

4. What is the product packaging?
Carton or according to customer requirements
